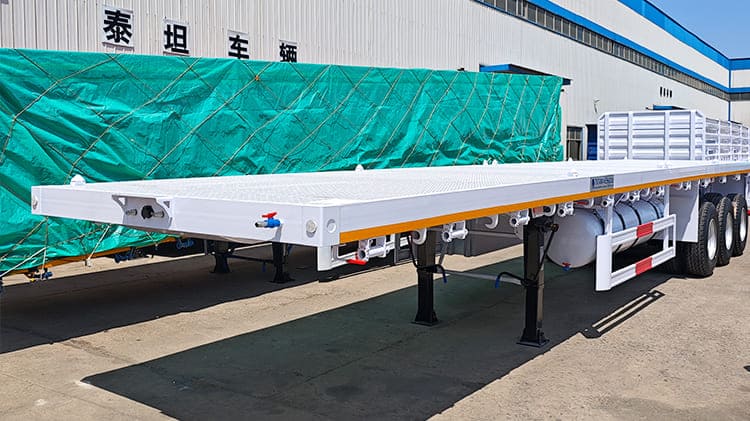

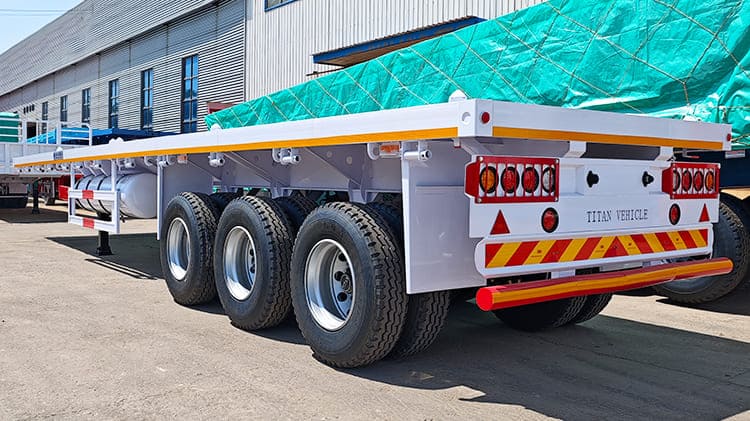

The flatbed trailer has undergone a series of engineering enhancements to comply with transport requirements while delivering consistent, reliable performance in daily operations. Designed primarily for the secure hauling of containers and general cargo, the 3 axle flatbed trailer's structure prioritizes both stability and efficiency on the road.
Specification of Flatbed Trailer
Overall Dimension: 12500mm*2500mm*1590mm
Load Capacity: 60 ton
Floor Plate: thickened pattern floor plate
Side Beam: 160mm high
Axles: 3 axles, 13 ton
Tire: 12 units, 12R22.5

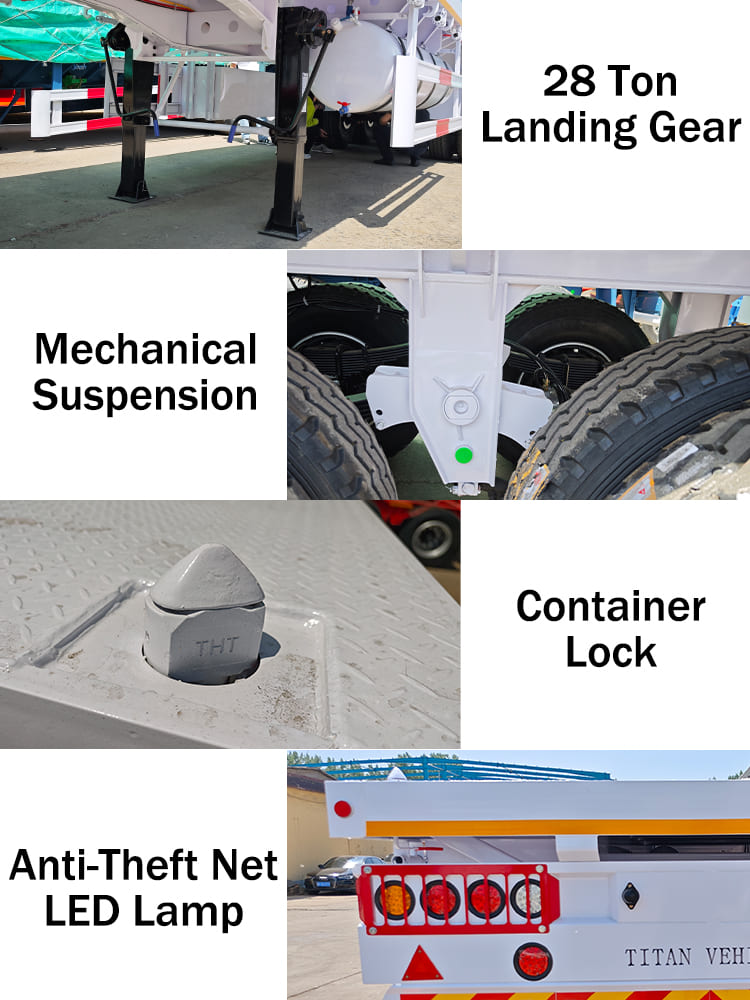

Landing Gear: 28 ton
Bumper: 4mm thick
Lamp: LED Lamp with protective net
Trailer Feature: large capacity fuel tank
Leaf Spring: 10 layers
Suspension: mechanical suspension
Advantage of Flatbed Trailer
To withstand heavy-duty demands, the frame of the flatbed trailer is fabricated from Q355 low-carbon alloy steel, a material recognized for its superior strength and resilience. This choice significantly improves the 3 axle flatbed trailer capacity to manage high-weight loads while reducing stress on the frame itself. Advanced automatic submerged arc welding is used throughout the assembly process, ensuring deep, uniform welds that maintain structural integrity and extend service life even under repeated strain.
Particular attention has been given to the gooseneck section, one of the most critical load-bearing areas. By employing a double-layered reinforcement design, this zone can absorb greater weight without bending or distortion. This engineering adjustment provides additional durability, making the 3 axle flatbed trailer exceptionally dependable for long-distance journeys and heavy freight tasks.
The 40 ft flatbed trailer internal framework is supported by carefully spaced bracing. Diagonal reinforcements are installed at intervals of no more than 500mm, linking the main beam with cross members to distribute forces evenly across the trailer body. This not only enhances overall stability but also helps prevent warping or deformation during demanding operations.
The 40 ft flatbed trailer cross members themselves are built with 100mm thick channel steel, giving the chassis added rigidity and improving load-bearing performance when handling oversized or dense cargo.
Shipping of 40 Feet Flatbed Trailer
Durability is further supported by protective measures applied before shipping. Each 40 ft flatbed trailer receives a coating of anti-rust wax over its exposed metal surfaces to shield against corrosion. To add another layer of defense, the trailer is fully wrapped in a waterproof covering, protecting it from damp air, sea spray, and moisture throughout maritime transport. Thanks to this dual protection system, every unit arrives ready for immediate deployment, structurally sound and visually preserved.
