End Dump Trailer FOB Price: USD 23000

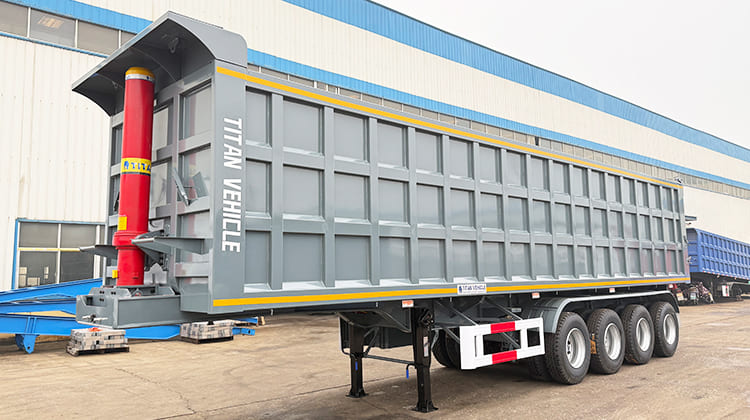

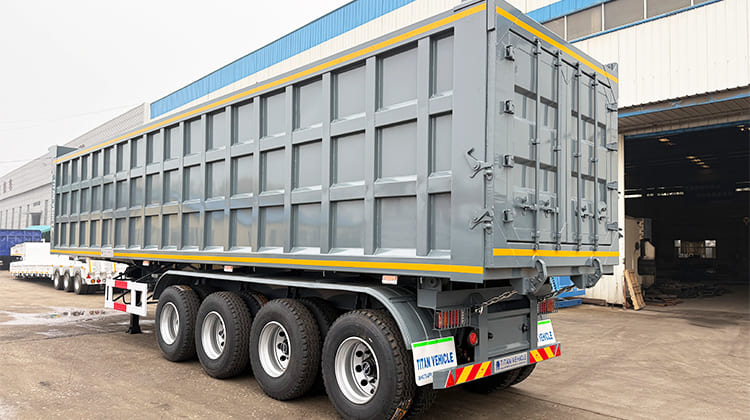

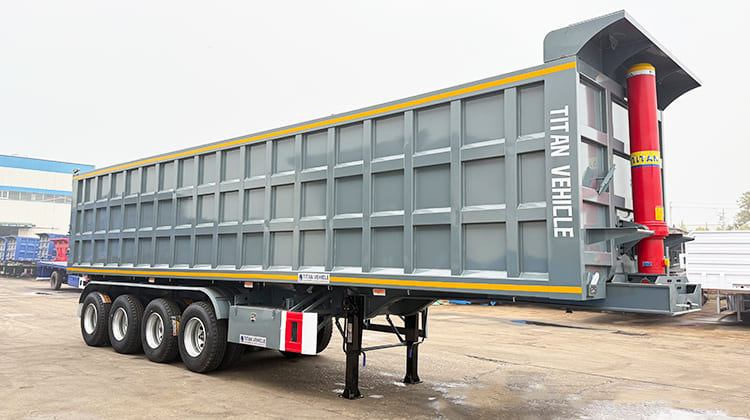

The 45cbm end dump trailer for sale is a transport vehicle that uses a hydraulic system to lift the rear end of the vehicle body for automatic unloading. End dump trailer for sale's primarily used for transporting bulk cargo such as sand, coal, and construction materials, significantly improving loading and unloading efficiency.
End Dump Trailer Specifications
Overall dimension: 11000mm * 2500mm *4000mm
Axles: 4 axles
Suspension: Heavy duty mechanical suspension
Lifting System: Full set of TITAN lifting cylinder

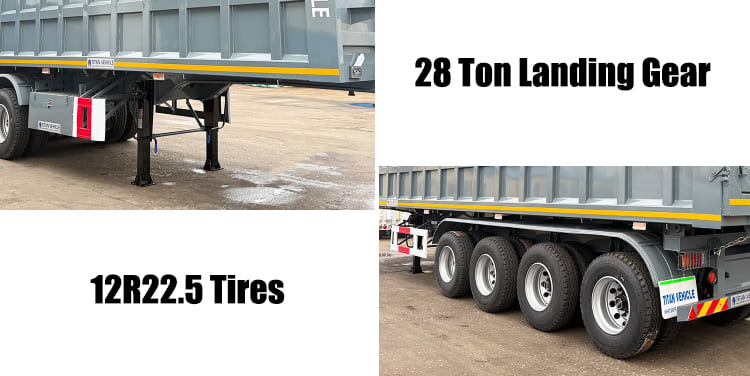

Tire: 16 units, 12R22.5
King pin: 90#
Landing gear: JOST
Brake system: WABCO
Electrical system: 24V, LED lights
Advantages of End Dump Trailer
This end dump trailer for sale demonstrates exceptional strength in materials and structural design, providing a solid foundation for efficient transportation. End dump trailer's longitudinal beams are constructed of high strength Q345B steel.
The 500mm longitudinal beam is paired with 18mm thick upper and lower fenders, and a 6+6mm double layer or 12mm thick center plate. This creates an exceptionally strong load bearing frame that can easily handle heavy load transport, effectively preventing deformation during long term use and significantly extending the 45cbm end dump trailer's service life.
The 45cbm end dump trailer for sale also boasts outstanding load bearing and loading and unloading efficiency. Its floorpan is constructed of 8mm flat and its side panels are 6mm flat, ensuring both wear resistance and stability. Combined with a large 45cbm capacity, end dump trailer for sale can accommodate a wide range of cargo needs and increase single trip transport volume.
The end dump trailer for sale's 13 ton axle, coupled with a widened and thickened suspension featuring a 70mm center pin and 10 widened and thickened leaf springs, evenly distributes the load, maintaining stability even in challenging road conditions and minimizing damage to the cargo and the 45cbm end dump trailer.

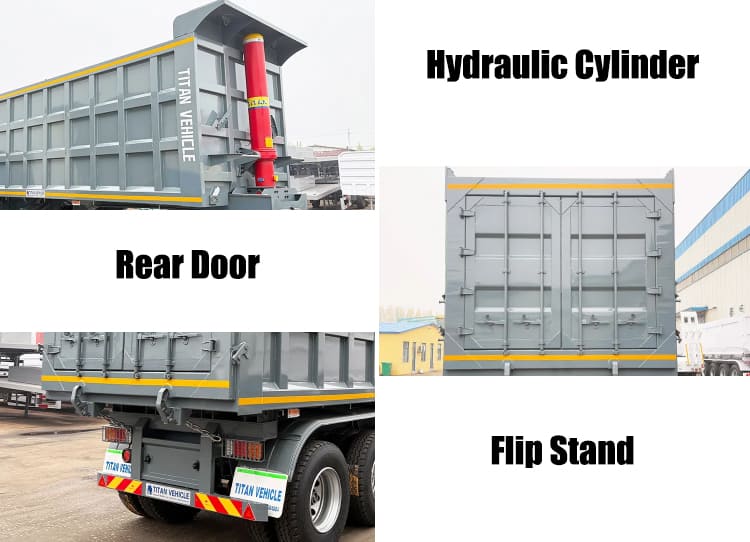

The 45cbm end dump trailer for sale is exceptionally well equipped for safety and ease of operation. The TITAN lifting system, equipped with a 240 hydraulic cylinder, provides powerful lifting force and smooth operation, enabling rapid unloading operations and significantly improving work efficiency.
The 45cbm end dump trailer for sale's WABCO brake valve ensures responsive and reliable braking, adding a crucial element to driving safety. The end dump trailer's high brightness, low energy LED lights provide clear visibility in inclement weather or at night, further minimizing safety hazards and fully meeting the needs of efficient and safe transportation.
