Truck Lowbed Trailer Price: 22000 USD

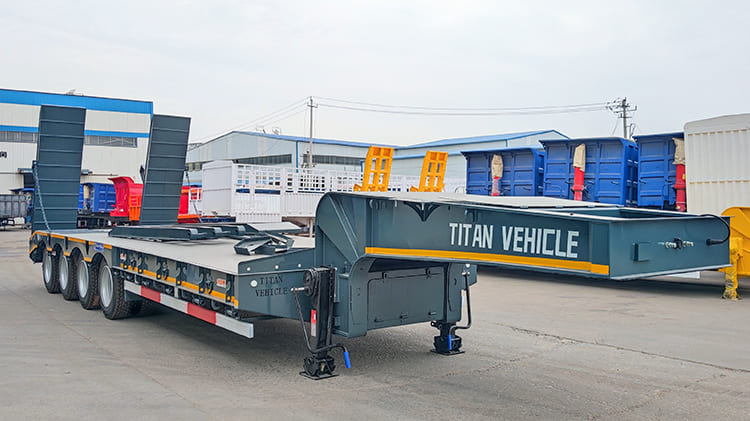

The TITAN 100 ton low bed trailer truck is meticulously engineered to handle a wide variety of heavy transport applications, ensuring superior performance through its optimized structural design.
By enhancing crucial components such as the suspension, flooring, and ramps, the 4 axle lowbed for sale achieves remarkable results in terms of load-bearing strength, operational safety, and overall stability. These upgrades of low bed truck trailer allow it to perform efficiently under challenging road and worksite conditions, meeting the diverse requirements of professional transport operators.

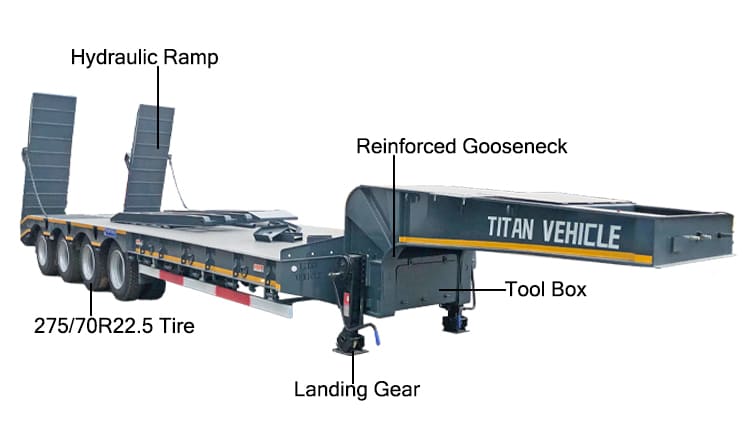

Specification of Lowbed Truck for Sale
Overall Dimension: 13000mm*3000mm*1770mm
Load Capacity: 100 ton
Floor Plate: thickened pattern plate
Side beam: 300mm high, 8mm thick
Axles: 4 axles, 13ton, TITAN brand
Tire: 16 units, 275/70R22.5
Ramp: hydraulic ramp
Landing Gear: 28 ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
Lamp: LED Lamp
Advantage of Lowbed Trailer Truck

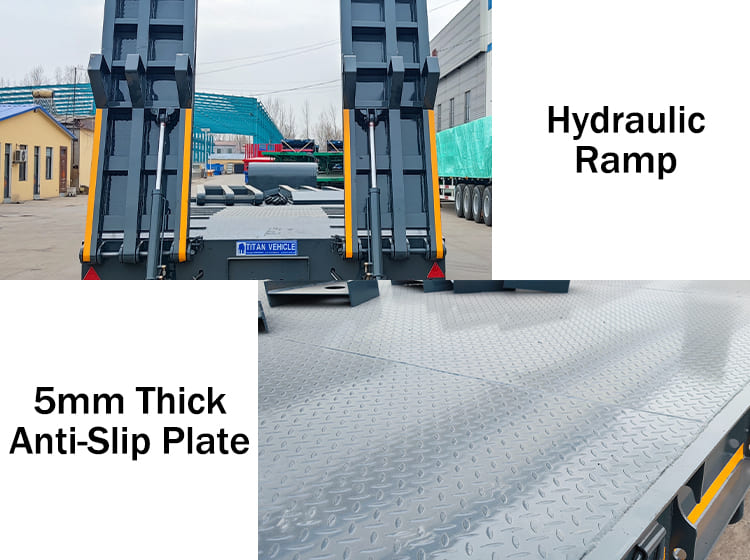

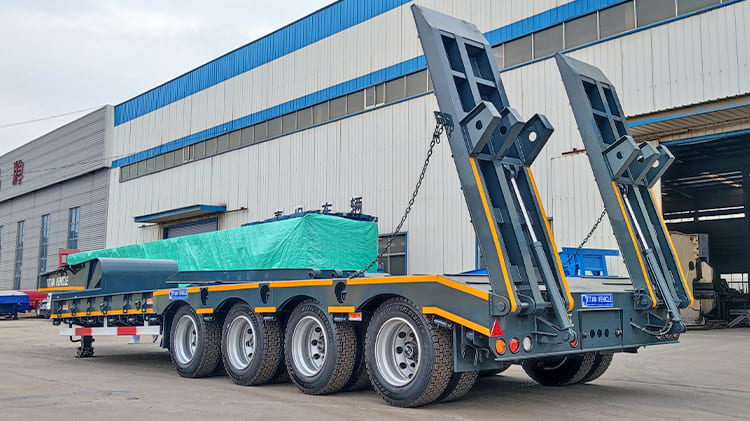

One of the standout features that significantly improves the hydraulic low bed trailer price functionality is the hydraulic ramp system. Specifically designed to simplify loading and unloading large or heavy machinery, the lowbed trailer truck ramp’s height and angle can be easily adjusted. This eliminates the need for manual operation, minimizing potential safety risks while increasing operational efficiency.
Once the cargo is securely loaded, the lowbed truck for sale ramp can be folded and locked in place, maximizing usable loading space. The compact storage design not only allows more room for additional equipment but also enhances the practicality of the 4 axle low bed trailer during long-distance hauls.
Equipped with 16 tires sized 275/70R22.5, the 100 ton low bed trailer truck maintains excellent traction, stability, and balance even under heavy loads. Tire configurations can be customized depending on specific road conditions or user requirements—optional sizes are also available.
These options for lowbed truck trailer low bed ensure greater adaptability to varied terrain while improving load distribution and tire longevity. This thoughtful design minimizes maintenance needs and extends the operational life of the 4 axle lowbed for sale, helping transport companies reduce replacement frequency and overall operating costs.
The deck structure of the 4 axle low bed trailer is another defining factor behind its durability and load-handling capacity. Built using a 5mm thick patterned steel plate, the truck lowbed trailer floor offers superior anti-slip properties, effectively preventing machinery from sliding during transport.
The increased thickness also adds strength and rigidity to the platform, allowing the hydraulic low bed trailer price to perform reliably even when navigating uneven or rugged surfaces. This reinforced flooring design of low bed truck trailer ensures consistent structural integrity and prevents deformation when carrying exceptionally heavy loads.

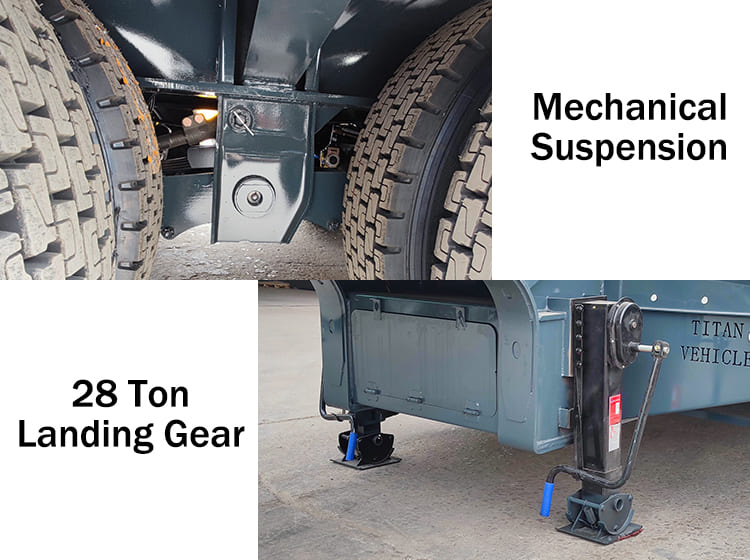

For enhanced reliability and protection, the 100 ton low bed trailer truck comes equipped with a heavy-duty mechanical suspension system made from high-tensile steel. This system is specifically designed to withstand continuous vibration and severe impact conditions during operation.
The multi-leaf spring setup absorbs road shocks effectively, reducing damage to both the hydraulic low bed trailer price and the cargo being carried. A 70mm center balance pin, reinforced in four directions, further strengthens the suspension assembly, ensuring improved stability and extended the lowbed trailer truck service life for vital components such as tires and axles.
An essential but often overlooked safety feature of the 4 axle lowbed for sale is the integrated rope tightener system. Positioned on both sides of the lowbed truck for sale, these devices firmly secure heavy machinery throughout transportation.
In sudden braking or sharp cornering situations, the lowbed truck trailer low bed rope tighteners help prevent cargo from shifting or tipping over. Simple in design yet highly effective, this system allows quick fastening and release of equipment. Combined with the anti-slip deck surface, it ensures maximum cargo safety during every journey.
Shipping of Low Bed Truck Trailer
To guarantee that the 4 axle low bed trailer arrives in pristine condition after international shipment, TITAN implements a dual-layer protective packaging process. First, the exterior of the hydraulic low bed trailer price is coated with a specialized wax layer to resist moisture and corrosion. Then, the entire unit is enclosed within a durable waterproof tarpaulin.
This double-layer protection provides an effective barrier against salty air and humidity during sea transport, preventing premature wear or surface damage with lowbed truck trailer low bed. Such meticulous attention to detail reflects TITAN’s dedication to durability, reliability, and customer satisfaction for every 100 ton lowbed for sale.
