The dump trailer is designed with precision engineering to meet the rigorous demands of transport and construction, delivering a balance of exceptional load-bearing strength, durability, and operator-friendly functionality. This combination of features ensures the equipment is both versatile and dependable, making the end dump trailer a trusted choice for bulk material handling across industries.

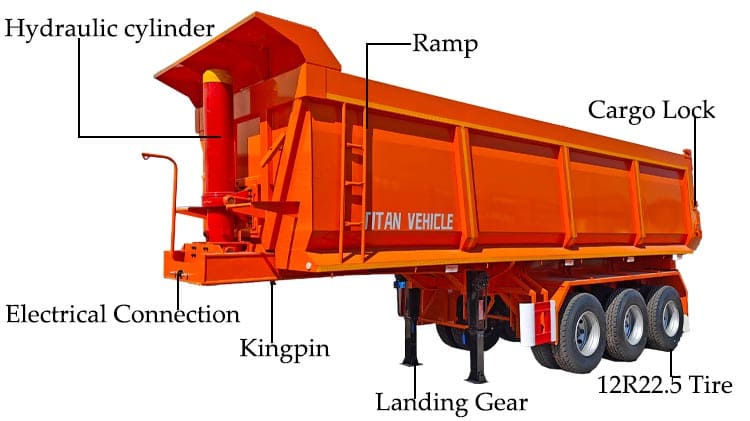

Specification of Dump Trailer
Dimension: 8500mmx2500mm x3950mm
Volume: 30 CBM
Load Capacity: 60 ton
Tipping System: hydraulic cylinder system

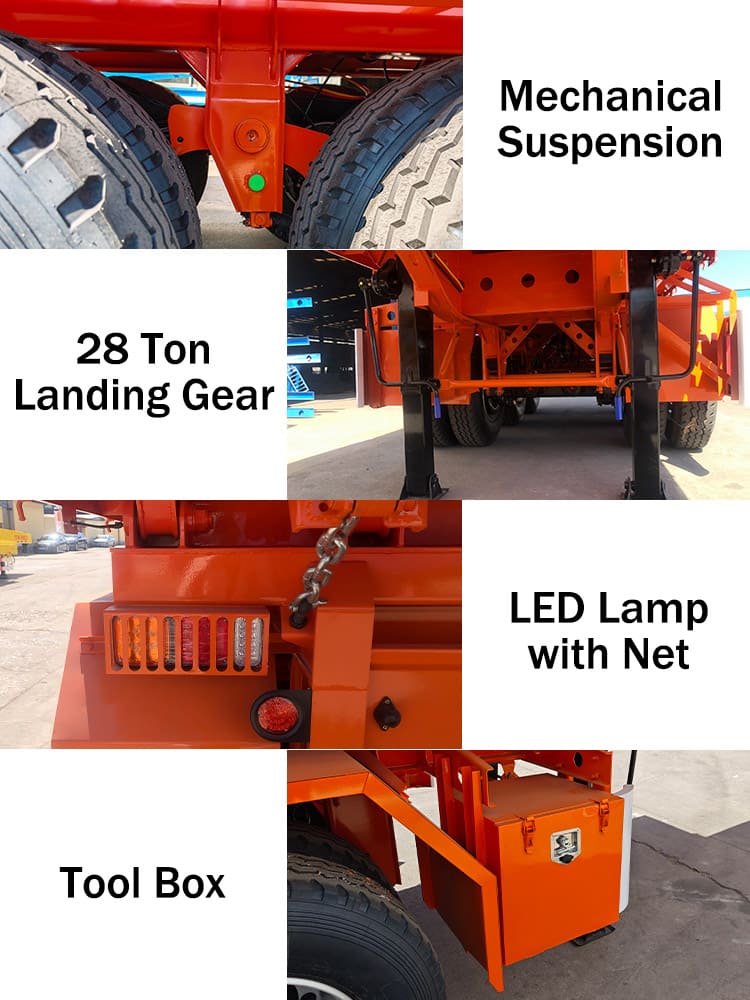

Landing Gear: 28 ton
Axles: 3 axles, 13ton, TITAN brand
Kingpin: JOST brand 2.0 /3.5inch
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp with protective net
Tire: 12 units, 12R22.5
Advantage of End Dump Trailer
At the heart of its structure is the main beam, constructed from advanced T700 high-strength steel. This material offers significantly greater tensile strength compared to conventional steel, enabling the hydraulic dump trailer to maintain its stability even under extreme loads or harsh working conditions.
To further reinforce the frame, three vertical support columns are strategically integrated along the side beams. These reinforcements strengthen resistance against lateral pressures, helping to prevent deformation during sharp maneuvers, shifting cargo, or rollover risks.
The lifting system defines much of the operational efficiency of the dump trailer. A compact, fully integrated hydraulic system powers efficient lifting and lowering, allowing operators to complete tipping operations quickly.
This design is particularly advantageous in restricted environments such as mining zones, ports, or urban construction areas where both space and speed are critical. By reducing manual labor and streamlining workflow, the end dump trailer improves productivity while significantly boosting safety for operators.
Safety is further supported by an advanced braking system. Each hydraulic dump trailer is fitted with 16-ton brake pads, delivering faster response times and shorter stopping distances, which are crucial during emergency scenarios.
Complementing this are high-pressure-resistant rubber air pipes, built for extended service life far beyond common industry standards. Electrical wiring systems, designed to endure continuous heavy use for at least five years, add yet another layer of reliability. These features collectively ensure the dump trailer remains dependable in demanding operations.
The dump trailer integrates high-grade materials, reinforced structural design, efficient hydraulics, reliable safety mechanisms, and thorough pre-shipment protection. Together, these elements make the end dump trailer and hydraulic dump trailer essential assets for businesses seeking to move bulk materials efficiently, safely, and with the assurance of long-term performance.
Shipping of End Dump Trailer
Before export, every end dump trailer undergoes a protective treatment process designed to preserve both its strength and appearance during transit. First, a wax coating is applied across all exposed steel surfaces to seal them against corrosion. This is followed by a durable waterproof tarp wrap that safeguards the hydraulic dump trailer from moisture, sea air, and weather conditions throughout transportation.
