Self Propelled Modular Transporter Price: 133000 USD
The self propelled modular transporter (SPMT) is purpose-built for heavy-duty transport applications, specializing in the safe movement of oversized and ultra-heavy equipment. Its advanced engineering integrates cutting-edge technology with a high-strength framework to deliver unmatched reliability in demanding industrial environments.
At its core, the SPMT features a high-strength Q690E steel welded frame with a reinforced triangular main beam, offering extraordinary load capacity and structural stability. This robust construction makes it a preferred choice among multi axle modular trailers worldwide, ensuring efficient and secure transport solutions for the most challenging logistics operations.
Specs of TITAN Multi Axle Modular Trailer

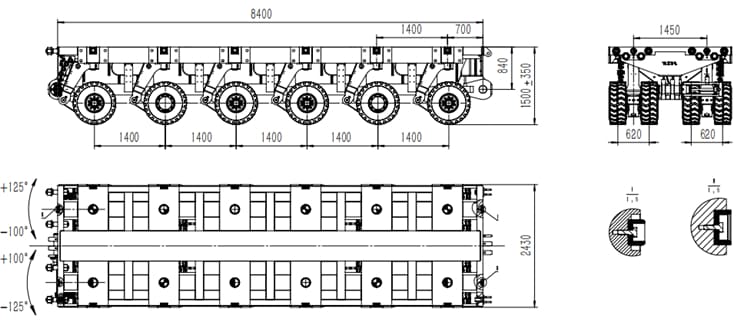

Dimension: 8400 mm * 2430 mm * 1500 mm
Usage: Transport heavy duty cargo
Max Payload: 180 tons
Tires: 24 units
Suspension type: Hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
Kingpin: 2.00 or 3.5-inch bolt-in kingpin
Advantages of TITAN Self Propelled Transporter
The self propelled modular transporter is engineered to carry extremely heavy loads, with each module supporting thousands of tons. The triangular main beam and Q690E steel frame provide unmatched structural strength. As a self propelled modular transporter for sale, it guarantees safe and reliable transport for oversized industrial equipment and machinery.

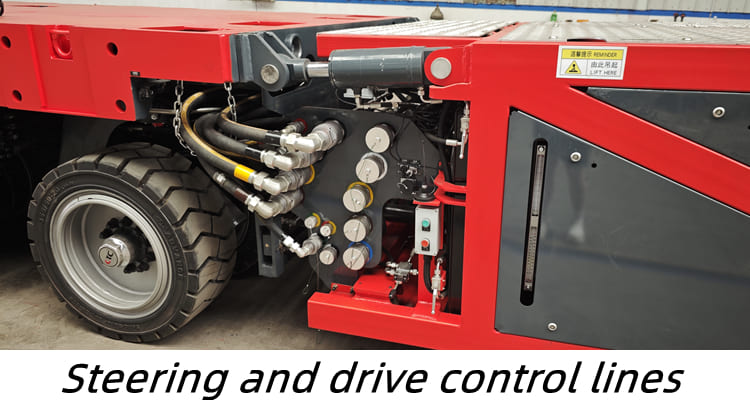

Equipped with a precise steering system, the self propelled modular transporter uses a rack-and-pinion hydraulic cylinder to control wheel angles from -100° to +130°. The integrated angle sensor provides real-time feedback to the proportional solenoids, ensuring smooth and accurate turning. The self propelled modular transporter for sale is ideal for maneuvering in tight spaces during complex industrial operations.

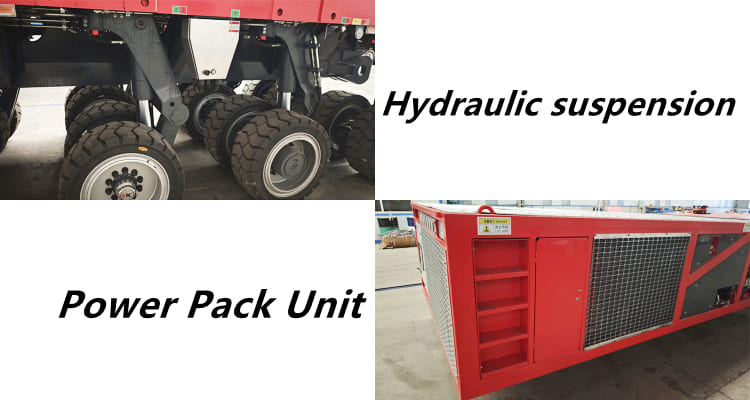

The hydraulic suspension system of this SPMT allows frame elevation of up to 700mm. The modular hydraulic circuits can be divided into zones, enabling flexible control of individual sections. With safety valves installed on every lifting cylinder, the self propelled modular transporter price ensures reliable operation while preventing accidental hydraulic oil leaks. The hydraulic suspension system features lifting cylinders with a 360mm stroke and 146mm bore, ensuring smooth elevation of the frame. Safety valves prevent hydraulic oil accidents, providing secure operation. Each self propelled modular transporter uses this system to maintain balance while transporting heavy and uneven loads.
The drivetrain consists of hydraulic motors and reducers connected to the drive axles. The hydraulic motors are mounted on the inner flange of the reducer, transmitting high torque to the wheels efficiently. This design allows the self propelled transporter to transport extremely heavy loads over long distances with precision and stability.
The pipeline system of this self propelled modular transporter for sale adopts flared connections with high-pressure resistance and impact tolerance. O-ring replacements are simple and cost-effective, and the steel pipe supports prevent fractures, making maintenance easy and safe. This ensures the multi axle heavy haul trailers perform reliably in demanding conditions.
The power pack unit (PPU) includes engine, air filter, silencer, radiator, intercooler, oil cooler, variable pump, fuel tank, hydraulic oil tank, and battery. This configuration provides the hydraulic and electrical power required for the self propelled modular transporter spmt to operate efficiently. With this robust system, heavy equipment can be moved safely and precisely.
Each lifting cylinder is equipped with a safety valve to prevent accidents in case of pipeline failure. The self propelled modular transporter for sale integrates these protective measures, providing operators with secure handling of multi axle heavy haul trailers. The self propelled transporter can be combined into multiple units, adapting to cargo length and weight. This modularity makes multi axle modular trailers highly versatile for transporting oversized industrial equipment. The self propelled modular transporter SPMT can easily expand to meet project requirements.
The self propelled modular transporter for sale is designed for low maintenance costs. Its hydraulic, drive, and electrical systems are accessible, and replacement parts are easily sourced. This ensures long service life and reliability for multi axle heavy haul trailers.
This self propelled modular transporter is widely used in ports, shipyards, construction, and heavy equipment transport. Its modular design and powerful hydraulic system make the multi axle heavy haul trailers for sale ideal for moving oversized loads safely and efficiently.
