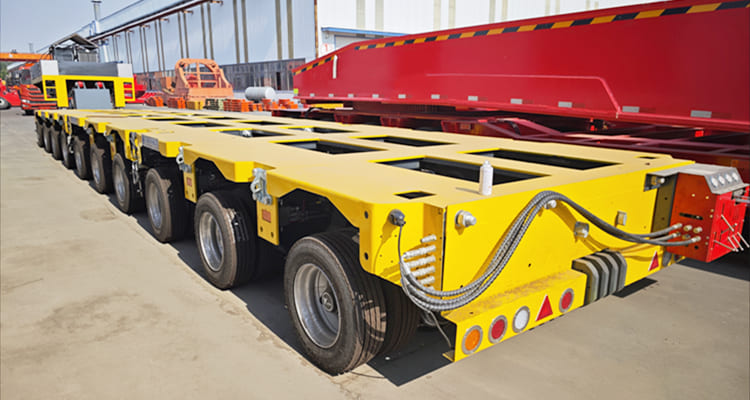

SPMT Modular Hydraulic Trailer for Sale Price: 120000 USD
The SPMT (Self-Propelled Modular Trailer) with a hydraulic gooseneck, available for sale in Zambia, is engineered to transport heavy and oversized cargo such as transformers, construction modules, and industrial equipment.
Its integrated hydraulic gooseneck design enhances versatility by allowing both powered self-propelled operation (via SPMT technology) and towing capability for long-distance transport. The detachable gooseneck adds flexibility during loading/unloading or when switching between transport modes, ensuring efficient handling of complex logistics challenges.
Specs of SPMT Modular Hydraulic Trailer
Name: Goldhofer Trailer
Dimension: 22812 mm * 3000 mm * 1080 mm
Usage: Transport bridge and heavy-duty cargo
Max Payload: 200 tons
Tires: 80 units
Suspension type: Hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
Kingpin: 2.00 or 3.5-inch bolt-in kingpin
Advantages of SPMT Modular Hydraulic Trailer

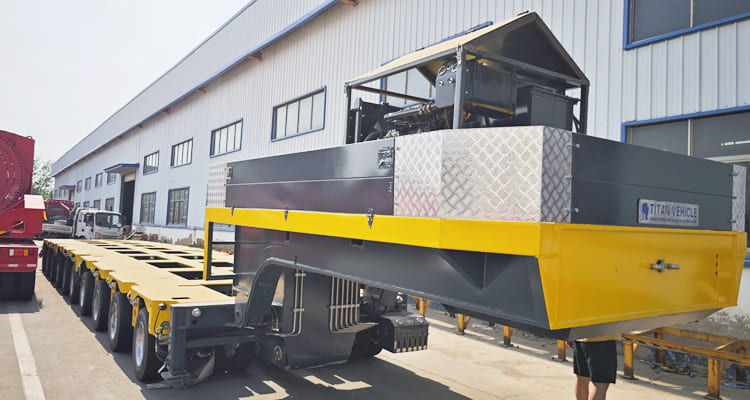

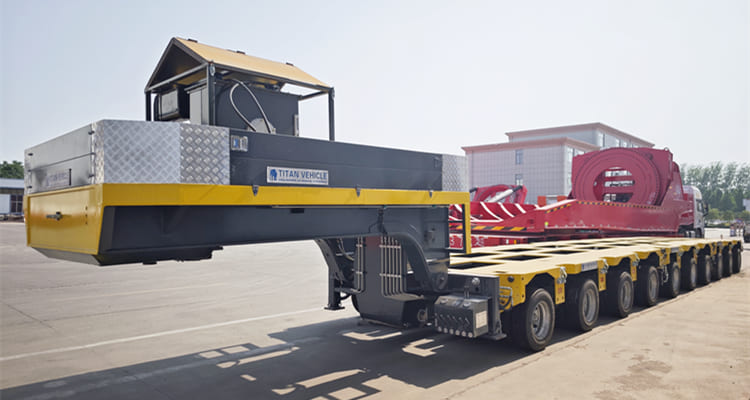

The hydraulic gooseneck connects the SPMT modular trailer to a prime mover for highway transport. It allows smooth coupling and automatic height adjustment, ensuring stable loading and unloading. When detached, the SPMT can switch to self-propelled mode for on-site operation. The hydraulic gooseneck makes road transport easier, while the modular design supports heavy industrial projects requiring precise maneuvering.
The SPMT with a hydraulic gooseneck can be operated in two modes: towing mode (with prime mover) and self-propelled mode (with PPU). This dual functionality enhances adaptability across road and project sites. Built from high-tensile steel, the SPMT with hydraulic gooseneck provides maximum strength and minimal torsion under extreme loads. The frame is welded by robotic systems, ensuring long-term durability and precision.
Each axle line of the SPMT with hydraulic gooseneck features independent hydraulic suspension, which automatically adjusts according to the load and terrain. This ensures stability during heavy lifting, loading, and transport over uneven ground. The trailer integrates a centralized hydraulic system controlling lifting, steering, and suspension. Operators can easily manage the entire unit through a wireless remote control, improving efficiency and safety during heavy load movement.

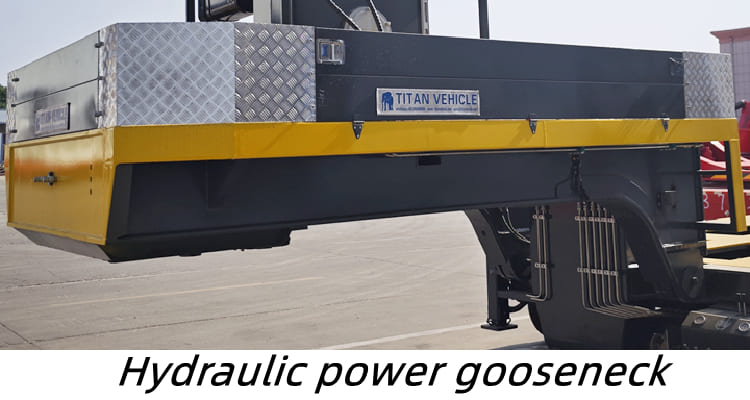

The hydraulic gooseneck is built with reinforced steel and precision cylinders that provide a secure connection between the SPMT modular hydraulic trailer and the prime mover. It ensures perfect alignment and stability when hauling on highways or maneuvering at low speeds during site operations.
The modular hydraulic trailer has a multi-axle steering system capable of ±130° steering angle. Combined with a hydraulic gooseneck, it provides superior flexibility for sharp turns and tight areas during transport and maneuvering. Each axle of the SPMT modular hydraulic trailer can be individually controlled via the steering hydraulic system. Operators can switch between crab, transverse, and coordinated steering modes, ensuring maximum maneuverability when transporting heavy loads in confined industrial zones.

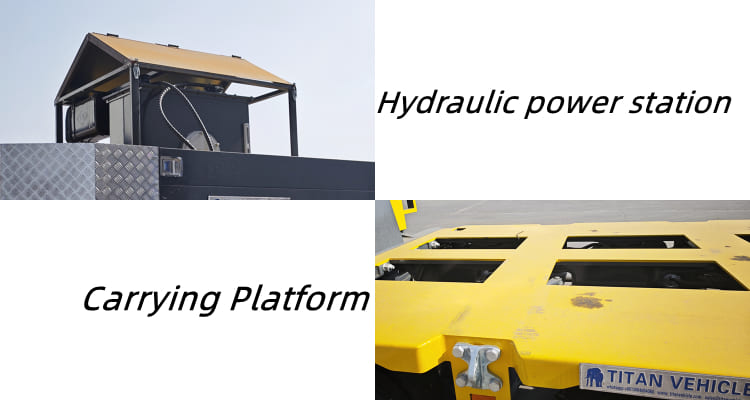

The SPMT modular hydraulic trailer includes a PPU equipped with a diesel engine, hydraulic pumps, and control circuits. It provides continuous hydraulic power for steering, lifting, and propulsion. Equipped with hydrostatic drive technology, the SPMT modular hydraulic trailer can move heavy cargo independently without a tractor. Each wheel unit has its own hydraulic motor, providing excellent traction and precise control in confined working spaces.

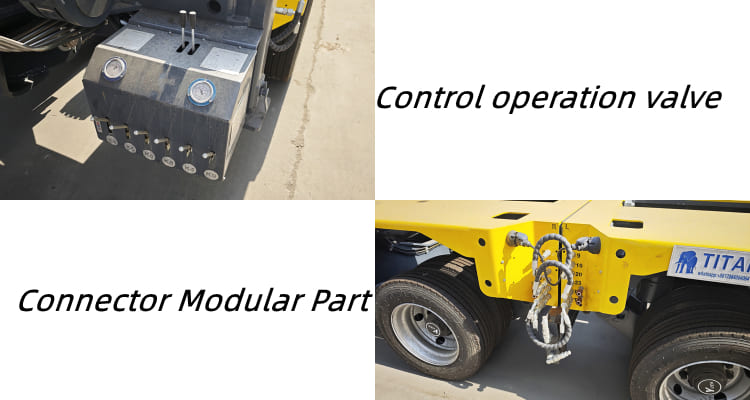

Equipped with overload protection, anti-explosion valves, and emergency stop features, this SPMT modular hydraulic trailer ensures operational safety during critical heavy transport tasks. The SPMT modular hydraulic trailer with a hydraulic gooseneck can be easily expanded by connecting multiple modules, enabling it to handle massive structures like bridge sections, reactors, or turbine housings. The hydraulic couplings ensure safe, synchronized lifting between modules.
Equipped with a hydraulic braking system, the SPMT modular trailer ensures responsive control and stability during downhill or emergency conditions. The power pack unit delivers consistent hydraulic power for braking, steering, and lifting without performance lag.
The hydraulic modular trailer with a hydraulic gooseneck offers lower operating costs compared to traditional heavy transporters. Its modular structure allows reconfiguration for different projects, eliminating the need for multiple dedicated trailers. Designed for African terrain, the SPMT modular hydraulic trailer for sale in Zambia can operate on rough, dusty, and uneven surfaces. The hydraulic suspension adapts to changing conditions, ensuring smooth movement and minimal cargo stress.
